Heng Long 1/16 Scale R/C German Sturmtiger BB Tank
(New Sound & Smoking Version)
WARNING
ALL R/C TANK BUYERS!
It
has come to our attention that a number of eBay vendors are claiming to represent
us and using our images and text. Don't be fooled by cheap imitations and don't
be surprised if the tank you ordered is from old stock sent direct from China/Hong
Kong and take a long time to arrive. You may be liable to pay import duties and
VAT.
We
advise that you read their Ts & Cs and particularly their disclaimers carefully.
Make sure their credentials are geuine. Are they who they claim to be? Will they
be around to help if thing goes wrong? Feedback is not always reliable. Also note
the cost of all the optional extras and lead time like for 6 days for "Heng
Long Mechanical Engineers" to fit upgrade parts. The Heng Long factory does
not install upgrade parts individually on request and they don't dispatch direct
to customers.
Please
note that Tankzone does not sell Heng Long R/C Tanks on eBay. Tankzone only stock
genuine Heng Long products and spare parts. All our tanks are the latest version
and tested thoroughly before they are despatched. Postage to UK postcodes is FREE.
We are a genuine registered limited company. Order from our website with confidence.
We look after our customers.
Automatic
electric gun system with safety features
Full
range of movement functions
Exhaust
smoke generator
Starting
motor and engine plus gun firing sound effects
Run
more than one at the same time!
7.2V
1500mAH rechargeable battery and charger included. Require 8 x AA batteries for
transmitter
The
Perfect Present
This
is a 1/16 scale fully painted and assembled replica of the German king Tiger Tank
featuring radio-controlled of all movement including turret rotation and gun elevation.
It features full suspension and a main gun that fires BB pellets up to 25 meters!
Excellent value for money and a big improvement on the previous non-sound/smoking
version. A great introduction to large scale radio controlled tanks.

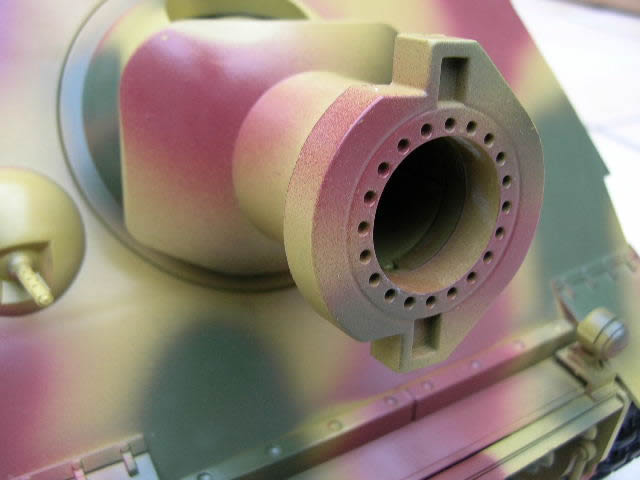

BB Firing !
This
Tank Actually Shoots!
Don't forget to buy some extra
BB pellets!
This
tank actually shoots 6mm plastic BBs from a fully automatic motorised firing system
using self-generated compressed air. These can hit a target up to 25m away. The
tank can fire while on the move or stationary and can hold up to 40 BBs in the
turret. A box of pellets is included to get you started.
Radio
Transmitter Unit
Full
Function Radio Control
The
model comes with a dedicated control transmitter unit with its own on/off switch
and a 'On' indicator light. The transmitter requires 8 AA alkaline batteries (not
included). The new version has a frequency crystal instead of the built-in 3 selectable
frequencies on the old version. The trim levers on the right joystick actually
works!
Function
Buttons
The three central buttons near the bottom of the transmitter have the functions
of:
[Engine
icon] - Starting & stopping the engine with starting motor and engine shutdown
effects
[G]

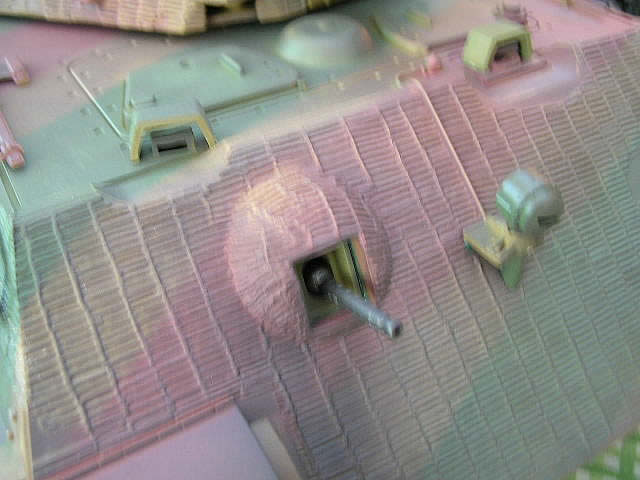

- Fires the machine gun with
sound effects and flashing effect on the turret co-axial machine gun.
[K]
- Simulates main gun firing sound and recoil of the hull. Does not fire gun. (Push
the left joy stock forward to fire BBs from the main gun)

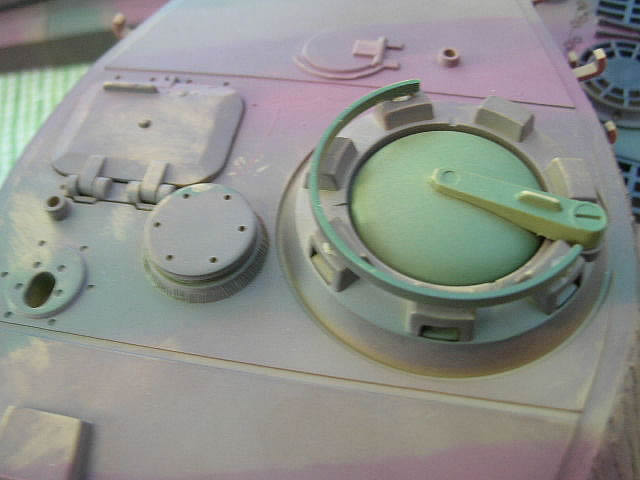

The
BB gun will only fire if the safety switch hidden underneath the loader's hatch
is switched on. The red light to the left of the main gun will come on when the
gun is about to fire. A red rubber plug is also supplied for the cannon when run
in non-firing mode.

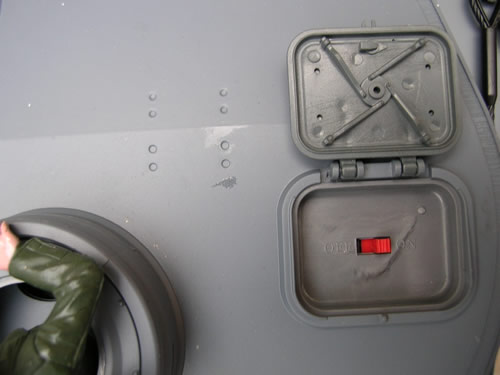

BB Gun Safety Switch
Full Movement Control
The
turret is able to turn left and right to almost a complete circle (320 degrees).
Push
the left joy stock left or right to rotate the turret.
The
BB gun can be fired at the same time while the turret is turning left or right.
The gun can move up and down at the same time as the turret is turning.
The barrel has an approximately 20 degree tilt up & down.
Push
the left joy stock down to move the gun up & down.
Independent suspension and
proportional speeds allow it to climb gradient of 35 degrees and overcome most
terrains and minor obstacles.
The
right joy stock is used to control all movement including forward, backward, left
turn, right turn, left spin, right spin, backward left turn and backward right
turn.The two trim levers for the right joy stick can be used to fine tune the
joy stick

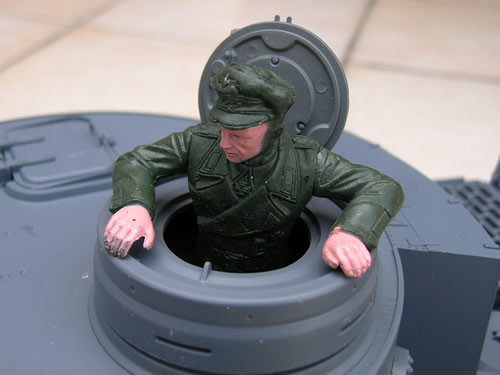

Commander Figure
Exhaust
Smoking Function

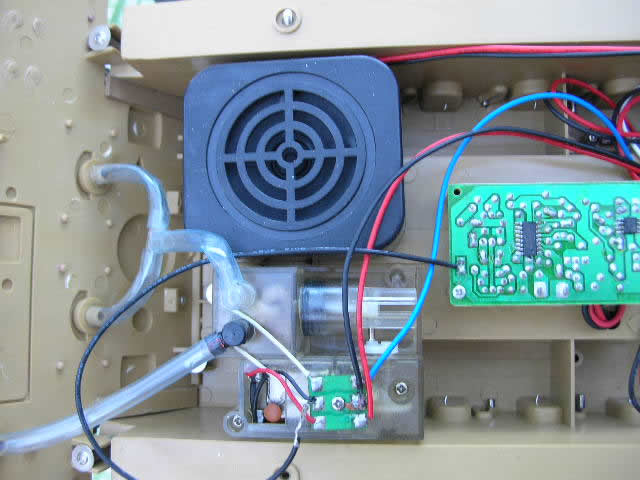

This
tank comes with a built-in smoke generator to provide exhaust smoking function.
The smoke comes out of the rear exhaust when the engine is running. It can be
switched off via a switch underneath the tank within the battery compartment !?!
Add a few drops of oil from the bottle supplied into the tubes inside the exhausts
periodically.
The
Tiger 1 has working front lights.

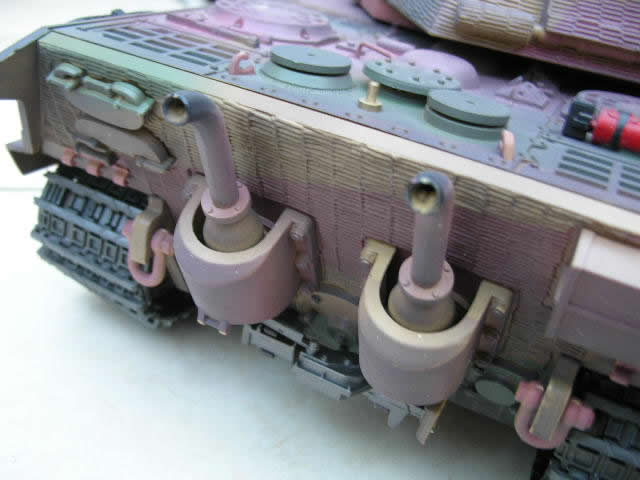

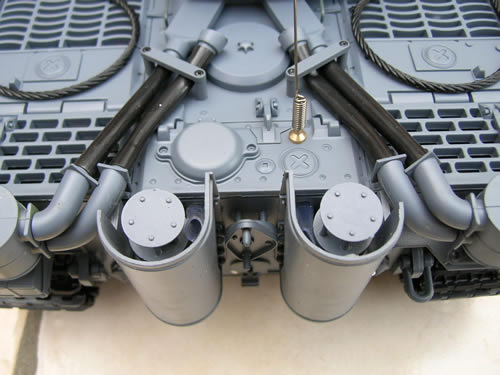

Smoking
Exhausts
Battery
Compartment
The volume
of the sound effects can also be adjusted by the small white switch on the bottom
of the tank using a small flat screw driver. Turn clockwise to lower the volume
and anti-clockwise to increase the volume !?!
on left shows smoke
generator switch (formerly ABC frequency switch for older version) top
left, small white round sound volume adjuster next to it,
The tank on/off switch bottom left, Ni-Cad battery connector (White) inside
battery compartment and tank receiver frequency crystal
above
it.
Changeable
Frequency
The
operational frequency of each tank can be changed by simply replacing the crystal
on the transmitter and on the tank by a set with a different frequency. The replaceable
transmitter crystal plugs into a socket to the right of the three function buttons.

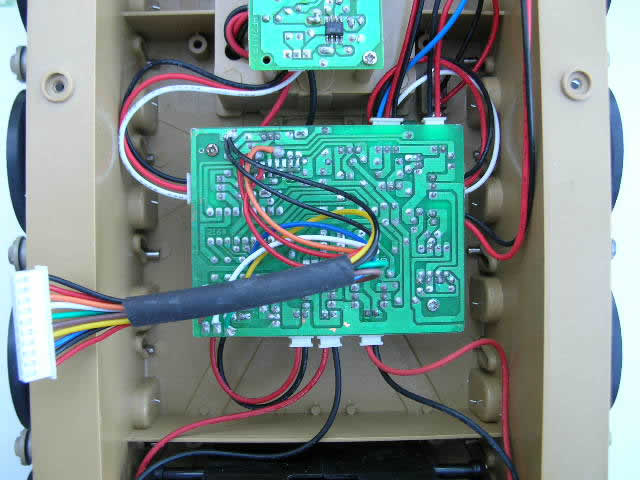

The receiver crystal is underneath the tank within the battery compartment. The
two crystals must be the same frequency for the tank to operate. Do not operate
tank of the same frequency close to each other or erratic behaviour may result
and cause possible damage to tank and people.
With
multiple sets of different frequency crystals, you can run more than one tank
at the same time and battle
with friends for extra fun! Use crystals in the 27MHz range.
Rechargeable
Battery and Charger
This
tank comes with a 7.2V Ni-Cad rechargeable battery and charger suitable for use
in the UK. Oversea customers will need a converter/transformer. The charger needs
about 7 to 8 hours for a full charge. Running time per full charge can be as long
as 30 minutes depending on pattern of play.
Warning!
Because of the power of the BB gun, they can cause pain and bruising if exposed
skin is struck at close range and severe eye injury if they strike someone in
the eye. These items are therefore not recommended or children under 18 years
of age without parental supervision. They are sold only to adults 18 years and
over. Wearing of eye protection goggle is also highly recommended.
Disclaimer
Our products represent subjects from a specific period in history. Some products
contain details, equipment, uniform and or vehicle that include insignia or marking
that some may find offensive. It is not our intension to glorify, nor exploit
the horrors and atrocities of war.
