Heng Long 1/16 Scale R/C US M26 Pershing BB Tank
Sound & Smoking Version)

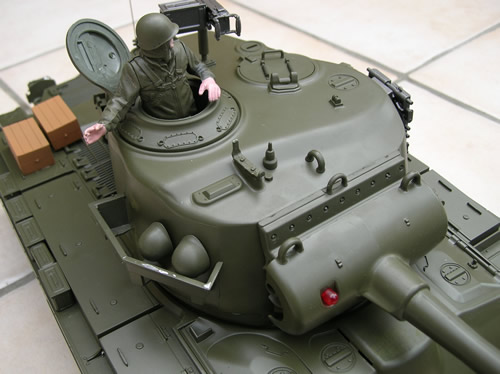

M26 Pershing with commander
figures and stowage on fender and engine deck
electric gun system with safety features
range of movement functions
battery and charger
motor and engine plus gun firing sound effects
more than one at the same time!
520mm W: 240mm H: 200mm
with Metal Gearboxes & Ni-Mh Battery
Perfect Christmas Present

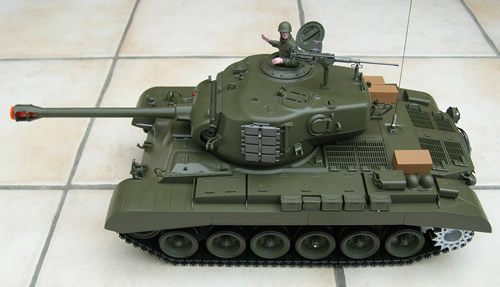

is a 1/16 scale fully painted and assembled replica of the U.S. World War II Heavy
Tank featuring radio-controlled of all movement including turret rotation and
gun elevation. It features full suspension and a main gun that fires BB pellets
up to 25 meters! A very good copy of the full option Tamiya model at a fraction
of the cost. Excellent value for money and a big improvement on the previous non-sound/smoking
version. A great introduction to large scale radio controlled tanks.

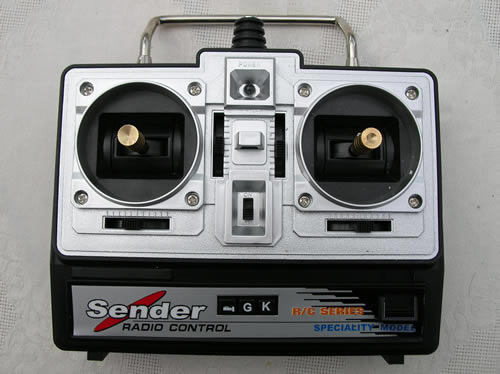

Function Radio Control|
model comes with a dedicated control transmitter unit with its own on/off switch
and an 'On' indicator light. The transmitter requires 8 AA alkaline batteries
(not included). Interchageable crystals allow more than one tanks to be operated
at the same time.|
The three central buttons near the bottom of the transmitter have the functions
icon - Starting & stopping the engine with starting motor and engine shutdown
- Firing the hull machine gun
with flashing light beneath the gun and sound effects
- Simulates main gun firing sound and recoil of the hull. It does not fire the
gun. (Push the left joy stock forward to fire BBs from the main gun)
BB gun will only fire if the safety switch hidden underneath the loader's hatch
is switched on. The red light to the left of the main gun will come on when the
gun is about to fire. A red rubber plug is also supplied for the cannon when run
in non-firing mode.

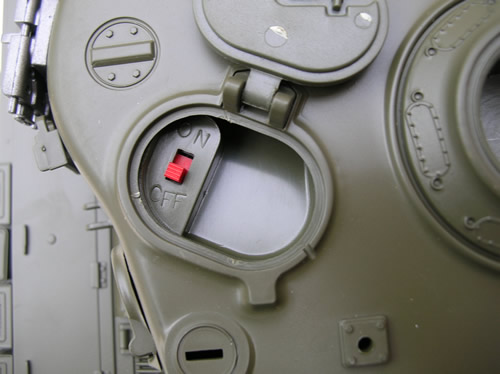

BB Gun Safety Switch
Full Movement Control
turret is able to turn left and right to almost a complete circle (320 degrees).
the left joy stock left or right to rotate the turret.
BB gun can be fired at the same time while the turret is turning left or right.
The gun can move up and down at the same time as the turret is turning.
The barrel has an approximately 20 degree tilt up & down.
the left joy stock down to move the gun up & down.

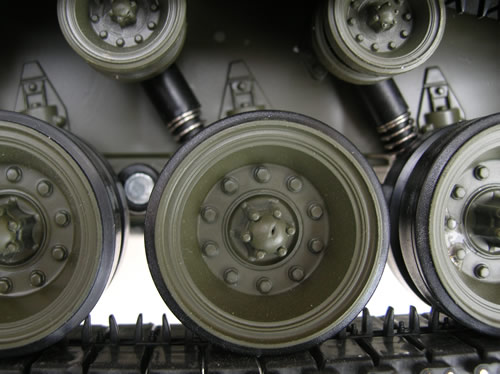

Independent suspension and
proportional speeds allow it to climb gradient of 35 degrees and overcome most
terrains and minor obstacles.
right joy stock is used to control all movement including forward, backward, left
turn, right turn, left spin, right spin, backward left turn and backward right
turn.The two trim levers for the right joy stick can be used to fine tune the

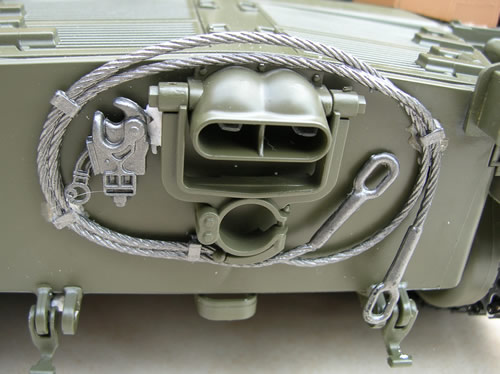

tank comes with a built-in smoke generator to provide exhaust smoking function.
The smoke comes out of the rear exhaust when the engine is running. It can be
switched off via a switch underneath the tank. The tank comes with a little oil
in the smoke generator unit. Add a few drops of oil from the bottle supplied into
the tubes inside the exhaust periodically!
M26 Pershing also has working front and rear lights.
volume of the sound effects can also be adjusted by the small white switch on
the bottom of the tank using a small flat screw driver. Turn clockwise to lower
the volume and anti-clockwise to increase the volume !?!
on left shows small white round sound volume adjuster top left, smoke generator
switch (formerly ABC frequency switch for older version) inside battery compartment
left of connector, Ni-Cad battery connector (White), tank receiver frequency crystal
of connector & tank on/off switch.
operational frequency of each tank can be changed by simply replacing the crystal
on the transmitter and on the tank by a set with a different frequency. The replaceable
transmitter crystal plugs into a socket to the right of the three function buttons.
The receiver crystal is underneath the tank within the battery compartment. The
two crystals must be the same frequency for the tank to operate. Do not operate
tank of the same frequency close to each other or erratic behaviour may result
and cause possible damage to tank and people.
multiple sets of different frequency crystals, you can run more than one tank
at the same time and battle
with friends for extra fun! Use crystals in the 27MHz range.
Battery and Charger
tank comes with a 7.2V Ni-Cad rechargeable battery and charger suitable for use
in the UK. Oversea customers will need a converter/transformer. The charger need
about 7 to 8 hours for a full charge. Running time per full charge can be as long
as 30 minutes depending on pattern of play.
on, treat yourself. You know you want it!
reserve the right to change the specification from time to time. Please email
us if in doubt.
Because of the power of the BB gun, they can cause pain and bruising if exposed
skin is struck at close range and severe eye injury if they strike someone in
the eye. These items are therefore not recommended or children under 18 years
of age without parental supervision. They are sold only to adults 18 years and
over. Wearing of eye protection goggle is also highly recommended.
