1. Closeup
of a smoke unit. Remove by unscrewing 3 screws from underneath
the tank. |
2. The
smoke unit connects to a socket underneath the main receiver
board. |

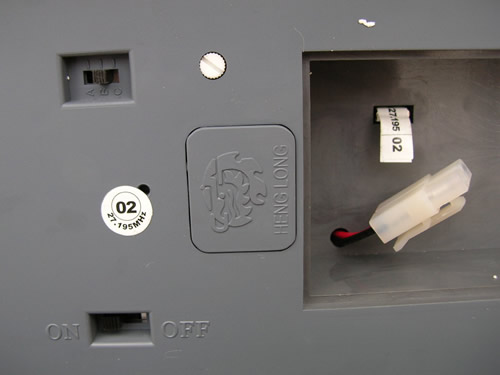

3. The switch for the smoke unit is located underneath the tank.
Shown top left in photo. |
4. Use
only a few drops of smoke oil at a time. Too much oil will
flood the chamber and render the smoke unit inoperable until
it dries out. |

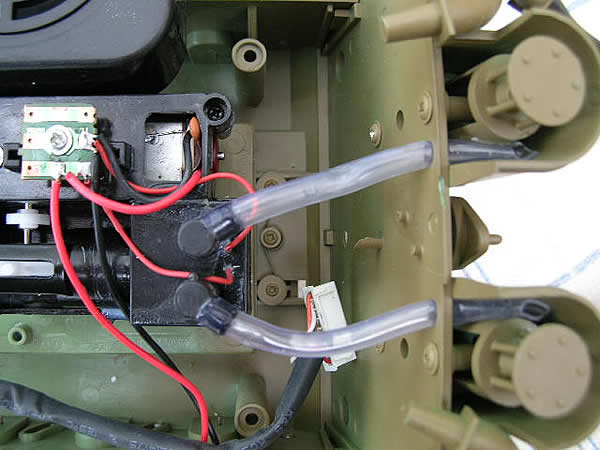

5. Arrangement
of pipes from smoke unit for a Tiger 1. Cut pipes to size as
necessary. |

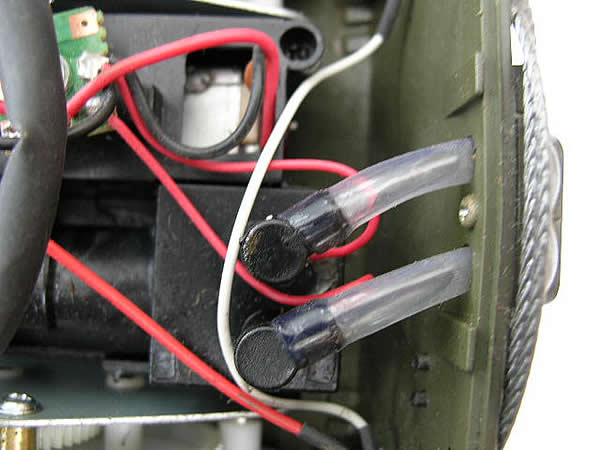

6. Arangement of pipes from smoke unit for a M26 Pershing (Snow
Leopard). Cut pipes to size as necessary. |
7. Note
position of smoke unit in a Tiger 1. |
|
|
